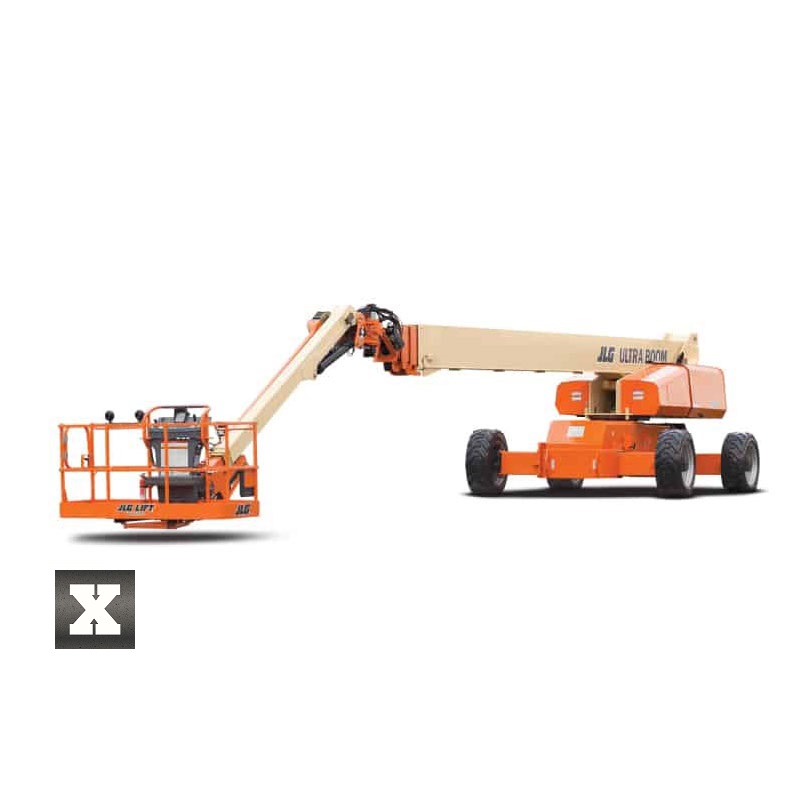

JLG 1500 SJ Diesel Telescopic Boom Lift 47.7m (156ft) Working Height

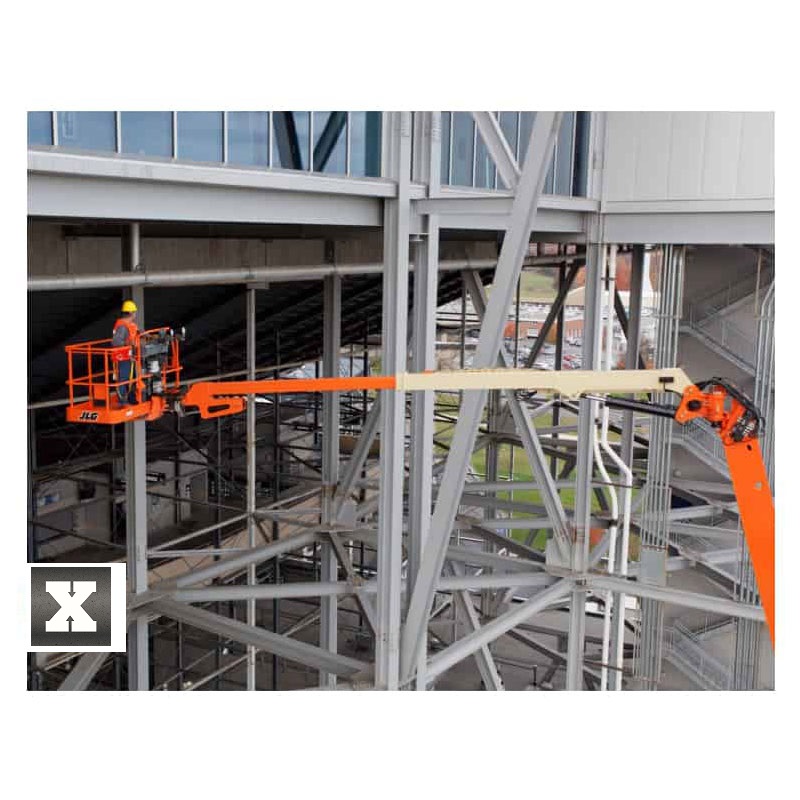

The JLG 1500 SJ is a diesel telescopic ultra boom lift – the largest self-propelled telescopic boom available. It has a telescoping jib that provides work envelope flexibility and even more outreach whilst at elevation.
JLG’s Ultra Series Boom lifts are built from 100,000 psi steel – 40% stronger than the competition, lifting up to 453kg (1000lb).

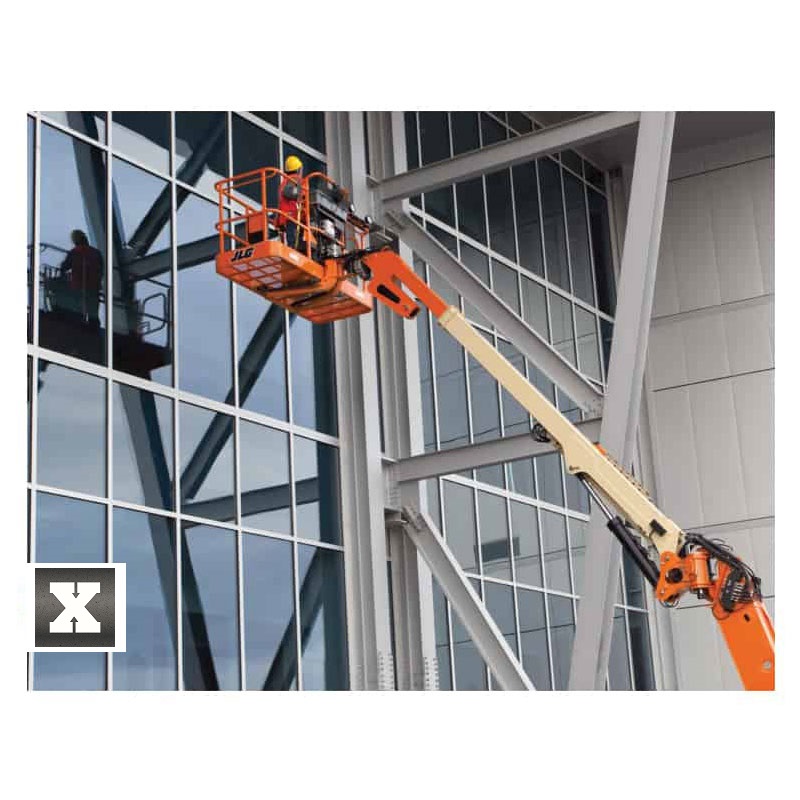

This product is ideal for general contractors, glaziers, window cleaners, welders, and more.
Key JLG 1500 SJ features:
-
- Achieves a working height of 47.7m (156ft)
- The outreach of 24.4m (80ft)
- 120-degree jib
- 4WD
- Up to 40% gradeability
We also offer IPAF Training Courses. Click here to view
| SPECIFICATIONS |
|
|
|
| WORKING HEIGHT |
|
|
47.72 m |
| WORKING OUTREACH |
|
|
25.03 m |
| SWING (CONTINUOUS) |
|
|
360° |
| PLATFORM CAPACITY (RESTRICTED) |
|
|
450 kg |
| PLATFORM CAPACITY (UNRESTRICTED) |
|
|
230 kg |
| PLATFORM ROTATOR (HYDRAULIC) |
|
|
180° |
| JIB - TELESCOPE (RETRACTED) |
|
|
4.62 m |
| JIB - TELESCOPE (EXTENDED) |
|
|
7.62 m |
| JIB - RANGE OF ARTICULATION |
|
|
120° Vertical (+75°/-45°) |
| PLATFORM SIZE |
|
|
0.91 x 2.44 m |
| OVERALL WIDTH (AXLES RETRACTED) |
|
|
2.49 m |
| OVERALL WIDTH (AXLES EXTENDED) |
|
|
3.81 m |
| TAILSWING (WORKING CONDITION) |
|
|
1.68 m |
| STOWED HEIGHT |
|
|
3.05 m |
| STOWED LENGTH |
|
|
18.82 m |

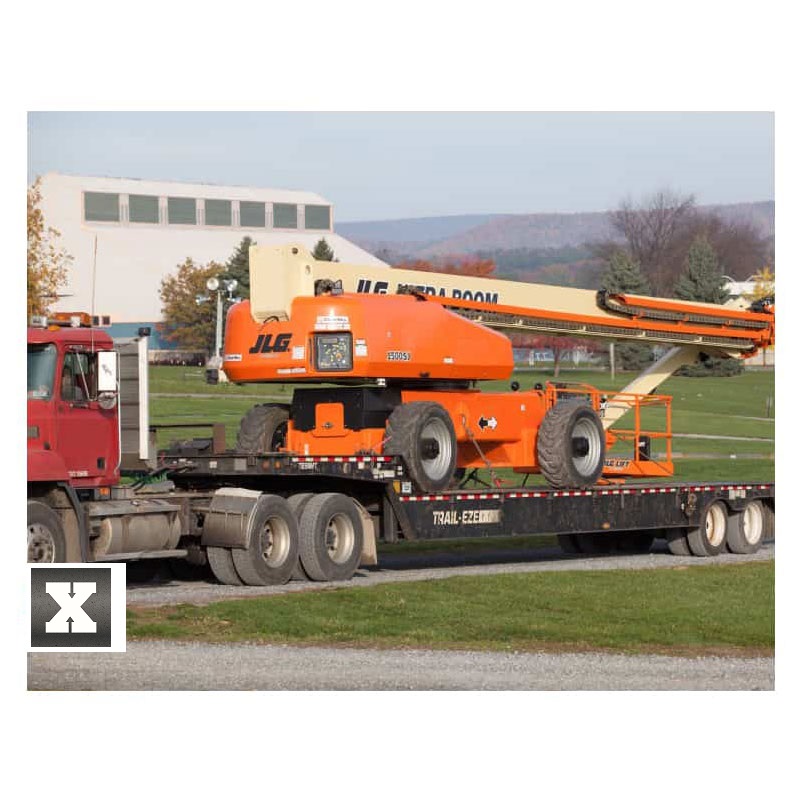

| TRANSPORT LENGTH |
|
|
13.11 m |
| WHEELBASE |
|
|
3.81 m |
| GROUND CLEARANCE |
|
|
0.30 m |
| MACHINE WEIGHT |
|
|
22.000 kg |
| MAXIMUM GROUND BEARING PRESSURE |
|
|
7.95 kg/cm² |
| DRIVE SPEED |
|
|
4.8 km/h |
| GREADABILITY |
|
|
40% |
| AXLE OSCILLATION |
|
|
0.30 m |
| TURNING RADIUS - INSIDE (AXLES RETRACTED) |
|
|
4.39 m |
| TURNING RADIUS - OUTSIDE (AXLES RETRACTED) |
|
|
6.86 m |
