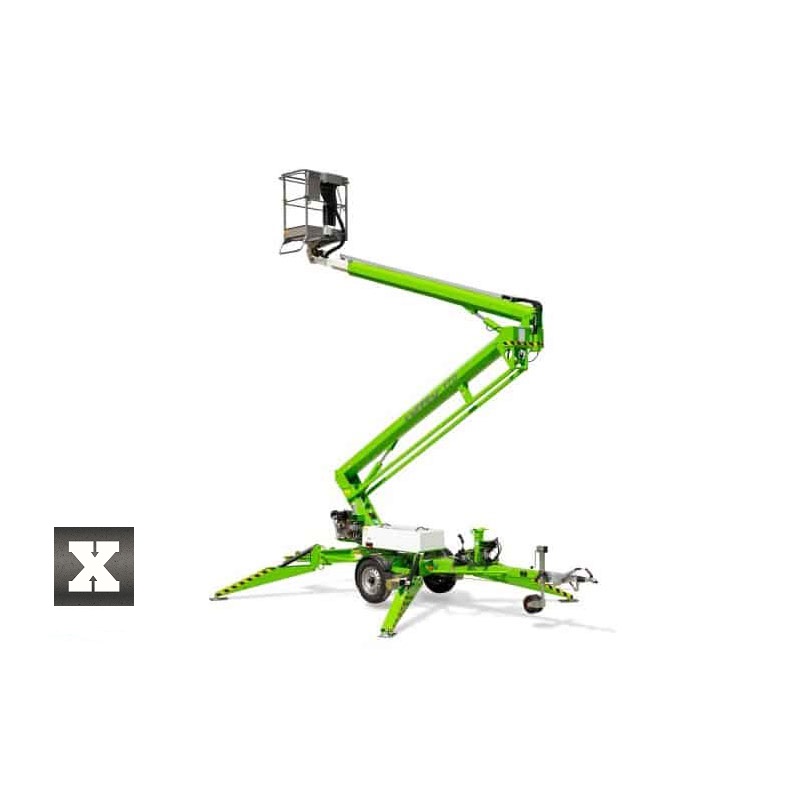

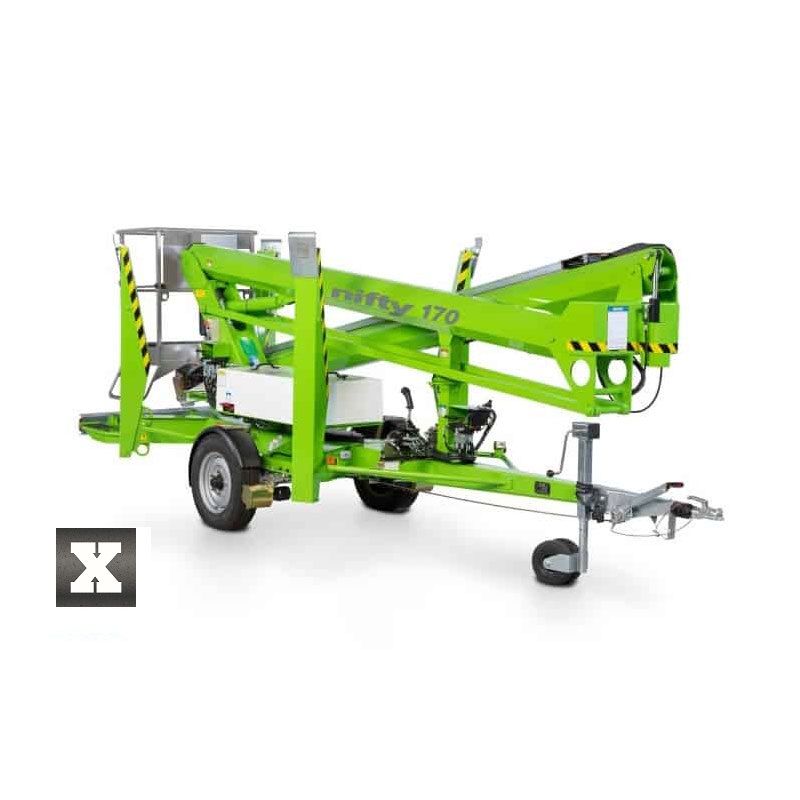

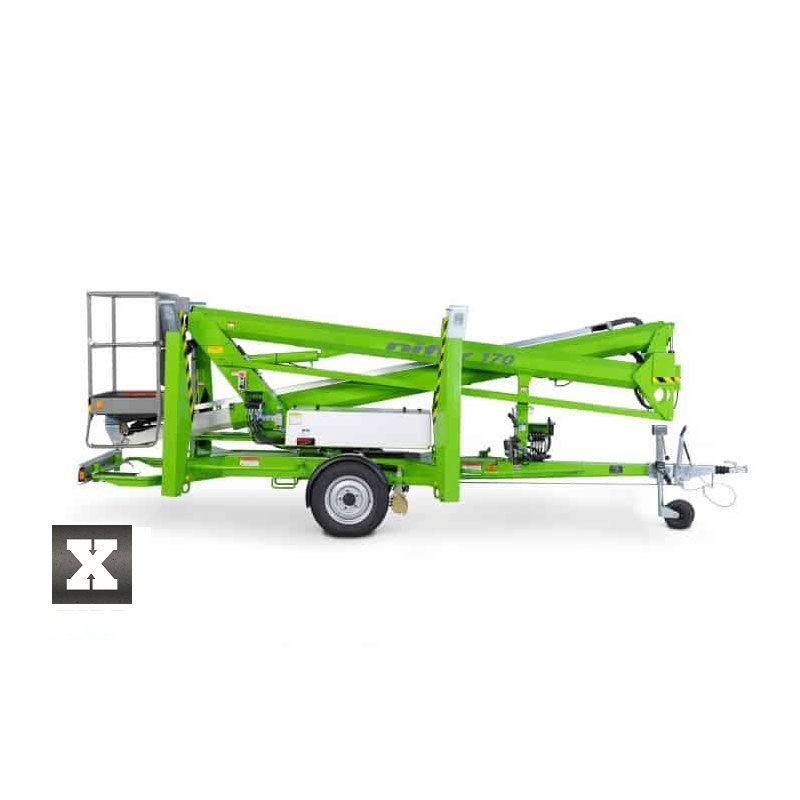

Niftylift 170 Trailer Mounted Boom Lift 17.1m (56ft) Working Height

With one of the largest working envelopes in its class, the Niftylift 170 trailer-mounted boom lift delivers maximum reach with stability and control.

Octagonal boom sections provide the Nifty 170 trailer mount strength without compromising on weight and the telescopic upper boom improves accuracy when positioning the platform.

Fully proportional hydraulic outriggers make setting up and levelling the Nifty 170 trailer mount quick and easy even on gradients.

The Nifty 170 trailer mount's outstanding reach makes it ideal for a wide range of applications.

Key Niftylift 170 trailer boom features:

  • Achieves a working height of 17.1m
  • Achieves an outreach of 8.7m
  • Telescopic Upper Boom- greater accuracy when positioning platform
  • Hydraulic outriggers for speedy setup

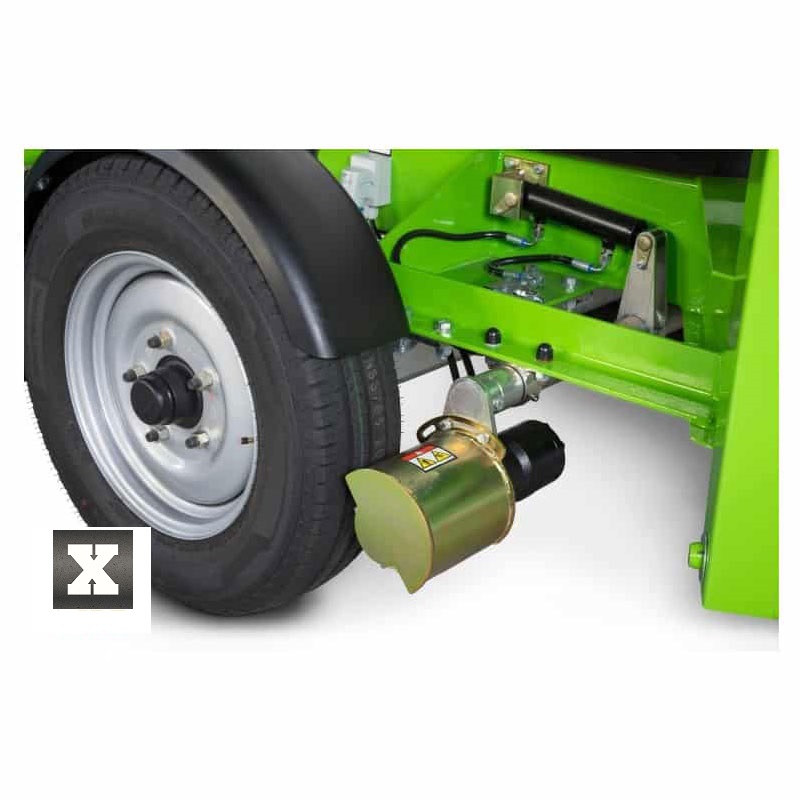

  • Traction Drive Option – for improved manoeuvrability on site.



We also offer IPAF Training Courses. Click here to view

SPECIFICATIONS
WORKING HEIGHT (A)     17.1 m
WORKING OUTREACH (C)     8.7 m
PLATFORM HEIGHT (B)     15.1 m
MACHINE WIDTH (F)     1.65 m
MACHINE HEIGHT (D)     2.15 m
MACHINE LENGTH (J)     6.2 m
WORKING WIDTH     4.4 m
MINIMUM WEIGHT     2160 kg
SAFE WORKING LOAD     200 kg
CAGE ROTATION     Available
CAGE WIDTH     1.1 m
CAGE DEPTH     0.65 m
MAXIMUM SLOPE     14% / 8°
OUTRIGGER TYPE     Hydraulic
TRACTION DRIVE     Available
POWER OPTIONS     Mains only
Battery only
Petrol or Diesel only
Bi-Energy (Engine & Battery)



Download Niftylift 170 Operator Manual
