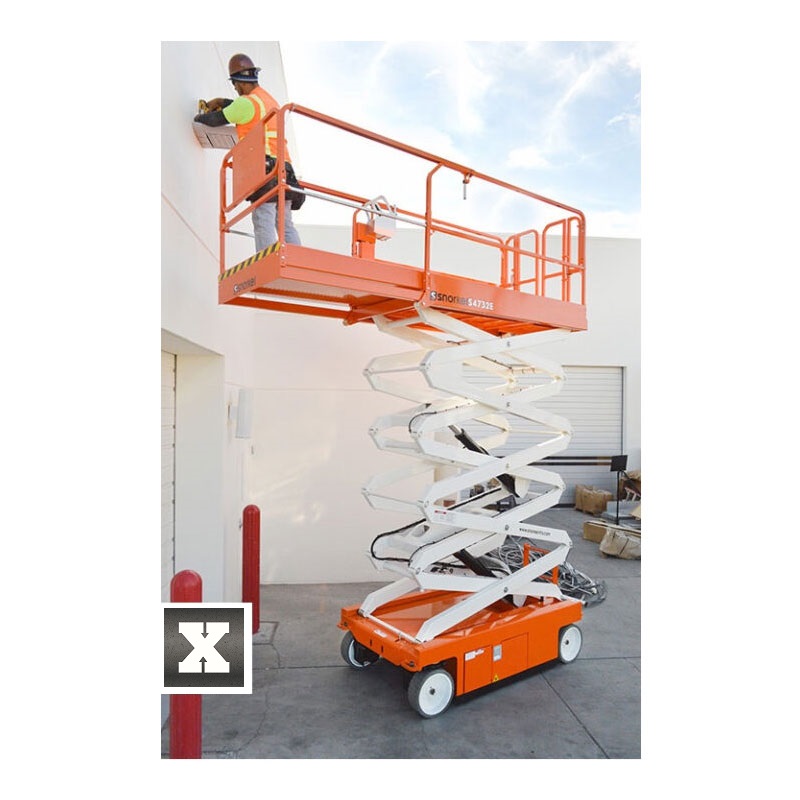

Snorkel S4732E Electric Scissor Lift 11.8m (39ft) Working Height
The Snorkel S4732E electric scissor lift is the largest model in Snorkel’s scissor lift family. Built to withstand the toughest conditions, the S4732E also boasts a number of innovative features to improve the operator experience and reduce maintenance time.
Key Snorkel S4732E electric scissor lift features:
- Achieves a working height of 11.8m
- Roll out extension deck of 1.21m
- 2 person plus equipment capacity in store
- 1 person plus equipment capacity outdoor
- Power line to platform
We also offer IPAF Training Courses. Click here to view
| SPECIFICATIONS |
|
S4726E |
S4732E |
| MAX. WORKING HEIGHT |
|
9.8 m |
11.8 m |
| MAX. PLATFORM HEIGHT (A) |
|
7.8 m |
9.8 m |
| PLATFORM SIZE (STOWED) |
|
1.09 x 2.14 m |
1.09 x 2.14 m |
| PLATFORM SIZE (EXTENDED) |
|
1.09 x 3.36 m |
1.09 x 3.36 m |
| EXTENSION DECK LENGTH (B) |
|
1.21 m |
1.21 m |
| OVERALL LENGTH (WITH STEP) (D) |
|
2.3 m |
2.3 m |
| OVERALL LENGTH (WITHOUT STEP) |
|
2.26 m |
2.26 m |
| OVERALL WIDTH |
|
1.19 m |
1.19 m |
| STOWED HEIGHT |
|
2.3 m |
2.39 m |
| MIN. HEIGHT (GUARDRAILS FOLDED) |
|
1.85 m |
1.94 m |
| GROUND CLEARANCE (STOWED) |
|
66 mm |
66 mm |
| GROUND CLEARANCE (ELEVATED) |
|
19 mm |
19 mm |
| PLATFORM CAPACITY |
|
454 kg |
350 kg |
| MAX. DRIVE HEIGHT |
|
7.8 m |
8.8 m |
| MAX. WIND SPEED |
|
12.5 m/s |
12.5 m/s |
| MAX. DRIVE SPEED (STOWED) |
|
3.2 km/h |
3.2 km/h |
| MAX. DRIVE SPEED (ELEVATED) |
|
0.6 km/h |
0.6 km/h |
| RAISE/LOWER TIME |
|
50/58 sec |
50/58 sec |
| GRADEABILITY |
|
25% |
25% |
| INSIDE TURNING RADIUS |
|
0.25 m |
0.25 m |
| OUTSIDE TURNING RADIUS |
|
2.41 m |
2.41 m |
| TYRES |
|
15 x 5 non-marking rubber |
15 x 5 non-marking rubber |
| CONTROLS |
|
Proportional |
Proportional |
| DRIVE SYSTEM |
|
2 wheel drive |
2 wheel drive |
| POWER SOURCE |
|
24V DC battery electric |
24V DC battery electric |
| CHARGER |
|
90-240V, 25 amp |
90-240V, 25 amp |
| WEIGHT |
|
2.250 kg |
2.693 kg |
