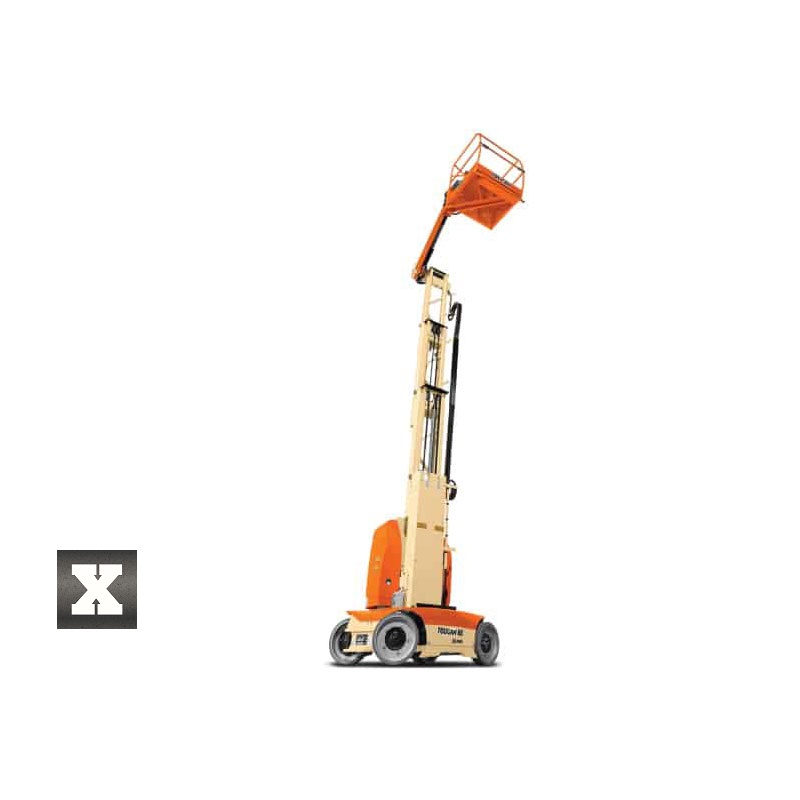

Toucan T8E Electric Mast Boom Lift 8.2m (27ft) Working Height

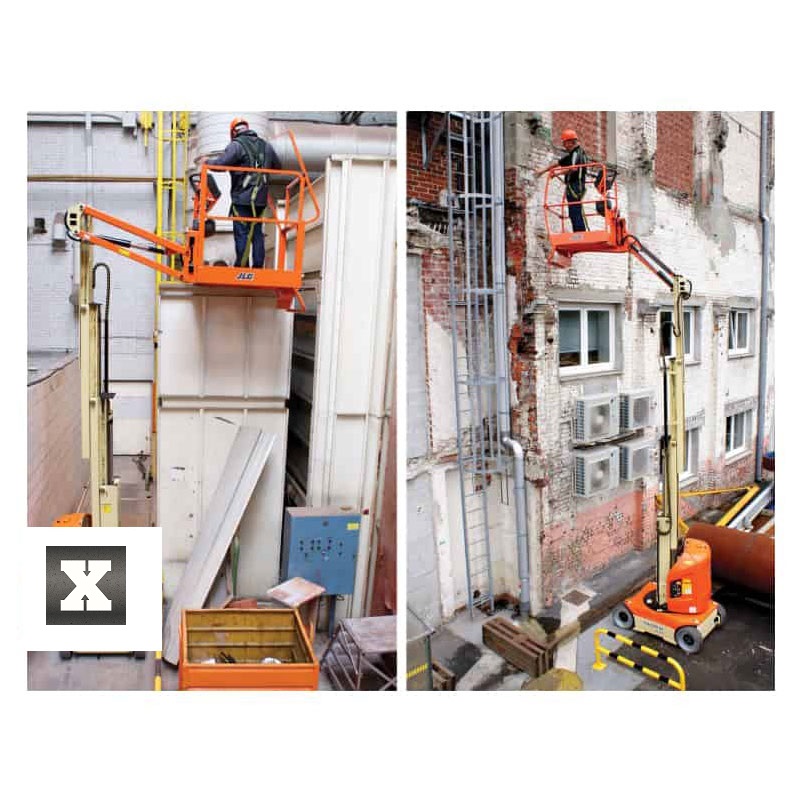

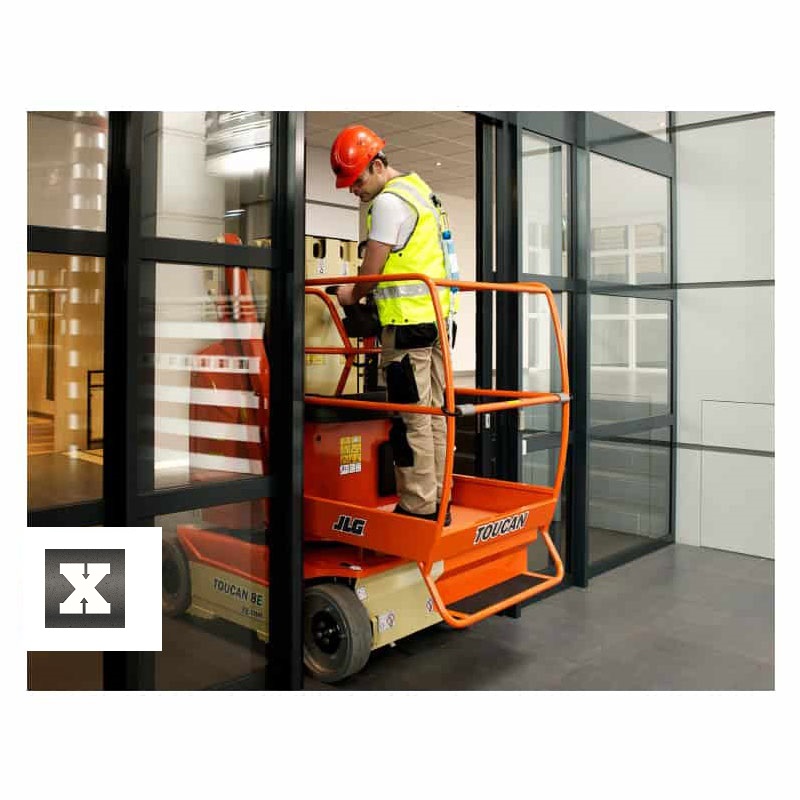

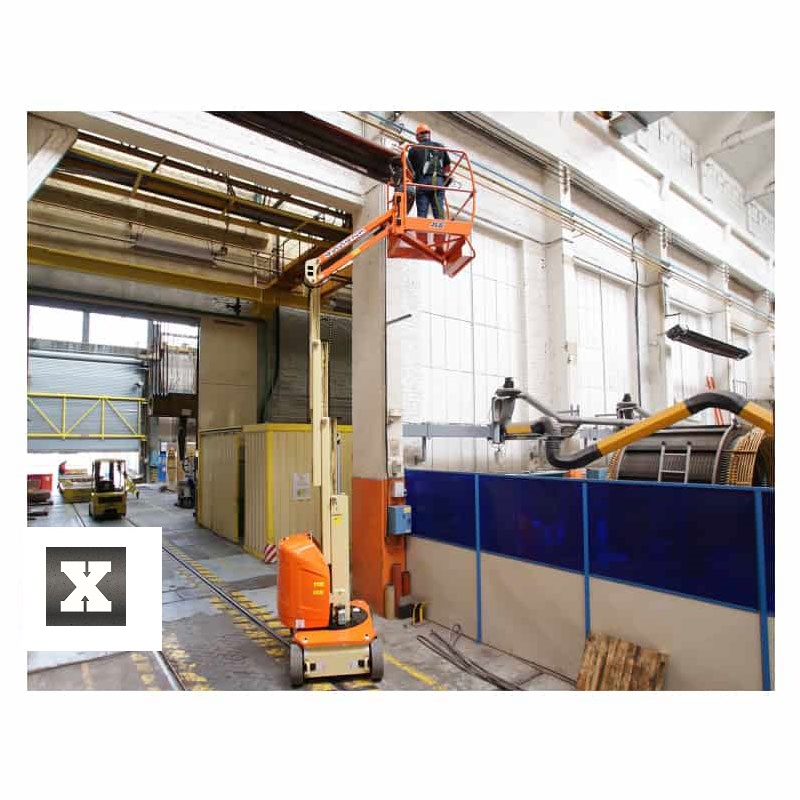

The Toucan T8E electric mast boom is ideal for a variety of indoor work. Compact dimensions and a precise control system are extremely handy when working within tight spaces. Extended reach and up & over height is achieved with a heavy, forklift style mast with an articulating jib.

Key Toucan T8E features:

    • Achieves a working height of 8.2m
    • 5.1m up and over height for avoiding obstacles
    • 2.65m outreach
    • 1.2m articulating jib
    • Small working footprint
    • Great Torque and efficiency from immediate-response AC drive motors
    • Zero emissions



We also offer IPAF Training Courses. Click here to view

SPECIFICATIONS
DRIVE SPEED - PLATFORM ELEVATED     0.75 km/h
DRIVE SPEED - PLATFORM LOWERED     5.50 km/h
GRADEABILITY - 2WD     25%
PLATFORM CAPACITY     200 kg
SWING     345°
SWING TYPE     Non-Continuous
TURNING RADIUS (INSIDE)     0.55 m
TURNING RADIUS (OUTSIDE)     1.99 m
JIB - RANGE OF ARTICULATION     112 °
GROUND CLEARANCE     0.1 m
MACHINE HEIGHT     1.99 m
MACHINE LENGTH     2.10 m
PLATFORM DIMENSION A     0.92 m
PLATFORM DIMENSION B     0.85 m
TAILSWING     0.17 m
TYRE SIZE     406 x 125 mm
WHEELBASE     1.20 m
UP AND OVER HEIGHT     5.08 m
WORKING HEIGHT     8.20 m
WORKING OUTREACH     2.65 m
CAPACITY -HYDRAULIC RESERVOIR     7.50 l
MACHINE WEIGHT (CE & GOST)     2100 kg





Download Toucan T8E Spec Overview
